What is GSM (Global System for Mobile Communications)?

Quick Definition: GSM (Global System for Mobile Communications) makes mobile phones work across different networks and countries. The technology created the first global standard for mobile communications, using authentication and over-the-air encryption to protect calls. Unfortunately, some of these original security measures are now showing their age.

If you've ever wondered how to use your mobile phone in different countries, then wonder no more: GSM is the answer. When mobile networks were just getting started, each country built its own system. This meant that entering a territory with a different system would render your phone useless. Mobile carriers decided that things needed to change—and that's where GSM started.

What is GSM Technology?

GSM development kicked off in the early 1980s when the European Conference of Postal and Telecommunications Administrations (CEPT) discussed a growing problem: incompatible phone networks.

This was a coordinated effort that was later managed by the European Telecommunications Standards Institute (ETSI). It led to the launch of GSM services sometime later in 1991. What started as a European project quickly grew into a global standard, which is a good thing for travelers.

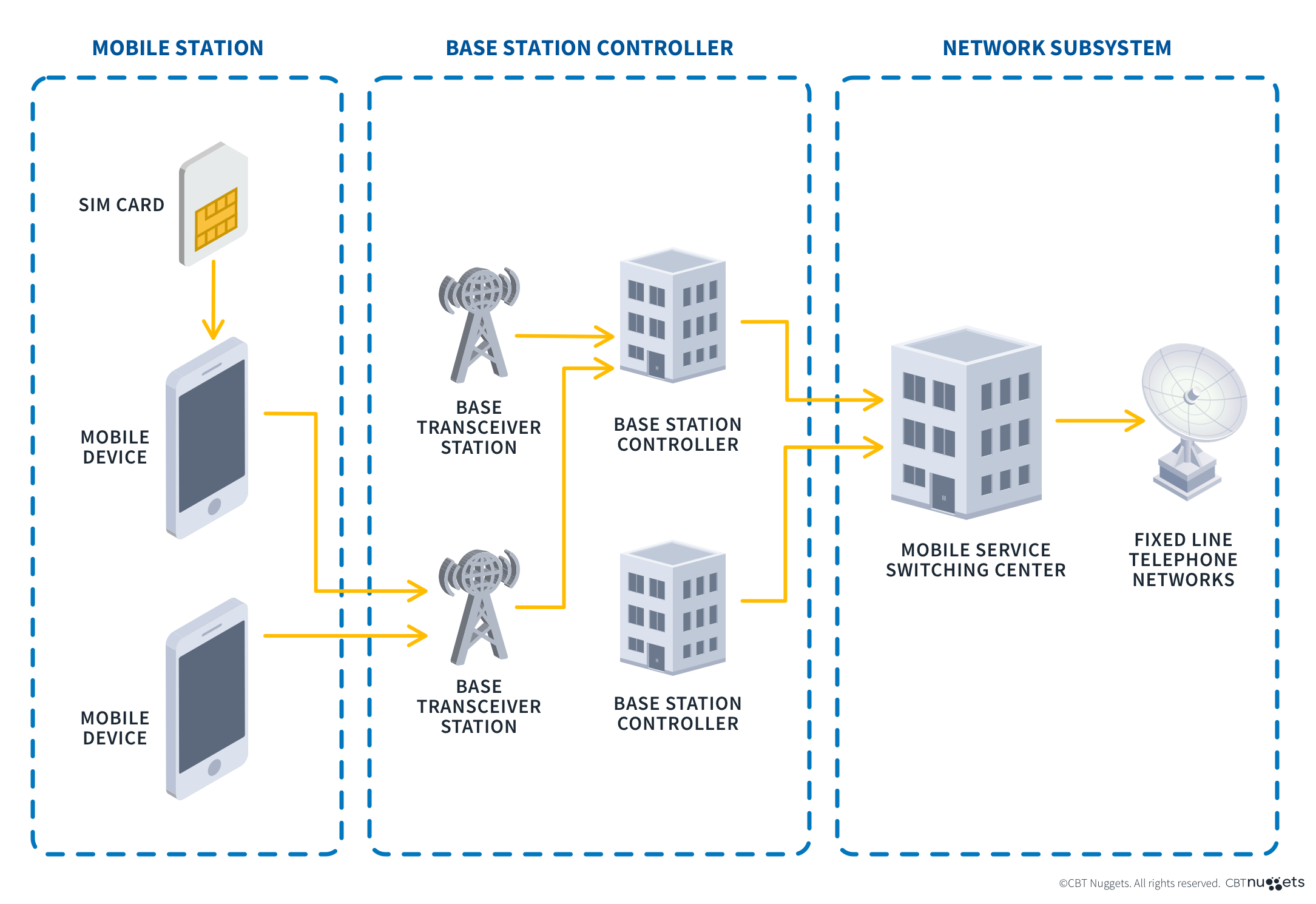

GSM divides its work between two central systems:

The Base Station Subsystem (BSS)

This handles all the radio communications:

• Radio towers pick up signals from phones

• Special controllers watch groups of towers

• Voice codecs compress and digitize speech

The Network Switching Subsystem (NSS)

This manages everything on the back end:

• Powerful switches direct calls to the right place

• Location databases keep track of moving phones

• Gateway systems connect to landlines and other carriers

The United States adopted CDMA technology early on, but GSM eventually became the dominant global standard for several reasons. First, GSM phones use SIM cards, making it easy to switch devices or carriers by inserting a tiny chip into another device. This gives users more flexibility, and GSM phones have built-in support for international roaming. These features helped drive adoption around the world.

GSM is an open standard that allows manufacturers to innovate and improve. By following published documentation, manufacturers could build their own GSM-spec equipment, creating healthy competition. More competition meant better phones at lower prices, helping GSM spread even faster.

How do You Install GSM Equipment?

Setting up GSM equipment requires careful planning and the right hardware. A bad installation can lead to coverage gaps, dropped calls, and security vulnerabilities. Like most project-based initiatives, starting with a solid plan makes everything easier.

Planning Your Installation

Before you roll out your equipment, first map out your network's requirements. Look at population density in your coverage area and estimate peak usage times based on the location. Business and commercial centers generally have higher usage during the day, while residential areas are more quiet during business hours.

Significant events like concerts and sports games or regular spikes, like rush hour traffic, can push networks to their limits, so plan for these spikes. Adding 30-50% extra headroom gives your network a healthy buffer to handle traffic growth without needing to shell out for expensive upgrades too soon.

The hardware for each region differs slightly, but your equipment checklist should include:

For Base Stations:

• Redundant power systems with battery backup

• Environmental controls for temperature management (Like AC and HVAC)

• Lightning and surge protection

• Secure, tamper-resistant housing and/or security

• Proper grounding systems

For Antennas:

• A clear line of sight to your target coverage areas

• Professional-grade mounting hardware (stainless or galvanized steel for corrosion resistance)

• Precise tools to help with alignment

• Weather protection measures to keep water and humidity out of your equipment

GSM Physical Installation Process

Placement is the one element that makes or breaks a GSM installation. High points like towers and tall buildings give base stations the reach they need, but accessibility for maintenance matters, too. Weather protection isn't just about keeping rain out—equipment needs shelter from temperature swings, humidity, and even salt air in coastal areas. Salt can wreak havoc on electronics, causing corrosion and moisture buildups.

Base station mounting needs serious consideration, too. The mounting system handles everything from high winds to ice buildup, so if you cut corners here, you'll pay for it later. Even tiny shifts in antenna alignment can create coverage problems that are tough to track down without the right tools

A solid power infrastructure keeps everything running:

• Commercial power runs should go through electricity conditioning equipment

• Battery systems must be in place to provide immediate backup

• Generators to handle extended outages and blackouts

• Automatic transfer switches to manage power transitions

• Multiple grounding points to protect against lightning

Testing and Verification

The installation isn't done until testing proves the system works as intended. Each component gets checked individually and then as part of the whole system so that all the pieces of the puzzle are verified as working. This way, you’ll catch issues early when fixes are easier and cheaper to implement.

Field testing reveals real-world performance:

• Drive testing maps actual coverage patterns

• Walk testing verifies indoor signal strength

• Load testing confirms capacity limits

• Interference scanning spots potential conflicts

• Security testing validates encryption setup

Modern GSM networks support different encryption options. Some use the newer A5/3 algorithm based on the KASUMI block cipher for stronger protection, but many networks still run older A5/1 encryption. This is a big deal because A5/1 has known vulnerabilities that could affect call security. Testing needs to verify that your network uses the strongest encryption methods available in that region.

As each test is completed, it builds a clearer picture of the network’s real-world performance. Coverage maps show where signals reach and where they drop off. Call quality tests check voice clarity under different conditions. Data throughput testing verifies that the network handles IP-based tech like internet connectivity, video calls, and online messaging.

GSM Network Configuration

Setting up a GSM network involves more than IP addresses and equipment setup with configuration. Modern management systems use IP-based tools for configuration and monitoring, but traditional GSM networks mainly use circuit-switched connections and specialized signaling protocols for handling calls.

Basic Network Setup

Frequency planning is very important because it prevents network interference. Each cell in your network needs its own frequency assignments, which must work alongside other carriers' networks without causing problems. If you get this wrong, users will experience anything from static to dropped calls, and not just on your network. Signal overlaps can have severe consequences for other devices configured for the same signal allocation.

Modern GSM equipment includes configuration tools that help manage:

• Cell frequency assignments

• Power levels across coverage zones

• Handover thresholds

• Traffic routing patterns

• Network timing synchronization

Security Configuration

Security in GSM has gotten better since the 1980s, when the standard was first created. To be fair, it was groundbreaking for its time, but some original security features now show their age. Modern networks use different levels of protection:

Authentication systems verify devices through:

• SIM card validation

• Network authentication protocols

• IMEI checking

• Fraud detection systems

Call encryption options include:

• A5/3 encryption: The strongest option, based on KASUMI.

• A5/1 encryption: Common, but has known weaknesses.

• A5/2 encryption: Deliberately weakened to allow countries with laws prohibiting encryption to import equipment. Avoid this, if possible.

Network monitoring becomes really important with these different security levels. Watch out for telltale signs like:

• Repeated or unusual failed authentication attempts

• Unusual traffic patterns

• Suspicious connection requests

• Potential eavesdropping attempts

Performance Tuning

Getting the best performance from a GSM network requires adjusting many different settings. Start carefully with power and handover settings, then fine-tune based on actual network usage. Too much power creates interference and too little leaves gaps in coverage.

Handovers need special attention:

• Set the right signal strength triggers

• Configure timing to stop unnecessary switches

• Balance load between cells

• Maintain voice quality during transitions

• Keep an eye on successful handover rates

Network Maintenance and Troubleshooting

Regular maintenance helps catch minor issues before they affect service. Most of the newer monitoring tools available today give you tons of data about network health. The trick is knowing what to look for.

Watch these stats closely:

• Call completion rates

• Voice quality metrics

• Authentication success rates

• Network congestion levels

• Handover performance

• Encryption status across cells

Software updates require careful planning and handling. They patch security holes and add features, but they can also introduce new problems. If you plan to perform updates, schedule maintenance during quiet hours—usually between 2 AM and 4 AM, when network traffic is at its lowest.

When you run into problems, you’ll need a plan of attack to get to the bottom of the cause. A good place to start troubleshooting is at the physical layer and then work your way up. A lot of problems have easy fixes if you know where to look:

Physical layer issues:

• Loose connections

• Water damage to equipment

• Power system failures

• Antenna misalignment

• Overheating equipment

Network layer problems:

• Interference from nearby equipment

• Channel conflicts

• Capacity overload

• Routing issues

• Authentication failures

Looking Ahead

GSM is still heavily relied on in many parts of the world, especially in developing regions and for specific IoT applications. However, progress is always being made. Operators in developed markets are phasing out their GSM networks to make room for newer technologies like 4G and 5G.

GSM's role has shifted but hasn't disappeared:

• IoT devices use it for low-power, wide-area coverage

• Remote areas rely on it because of its vast infrastructure

• Developing regions use it for its budget-friendly price tag

• Legacy devices can’t operate on newer networks and will need GSM to work

The principles that you learn from GSM network management will apply to newer technologies, too. The basics of troubleshooting, fault finding, and logical thinking are very useful and can be applied to everything from network troubleshooting to software debugging.

Once you understand how GSM handles challenges with frequency management, security, and network optimization, you’ll have a better grasp of any wireless technology.
